Editor's Note (Toru Nakagawa, Jun. 21, 2015)

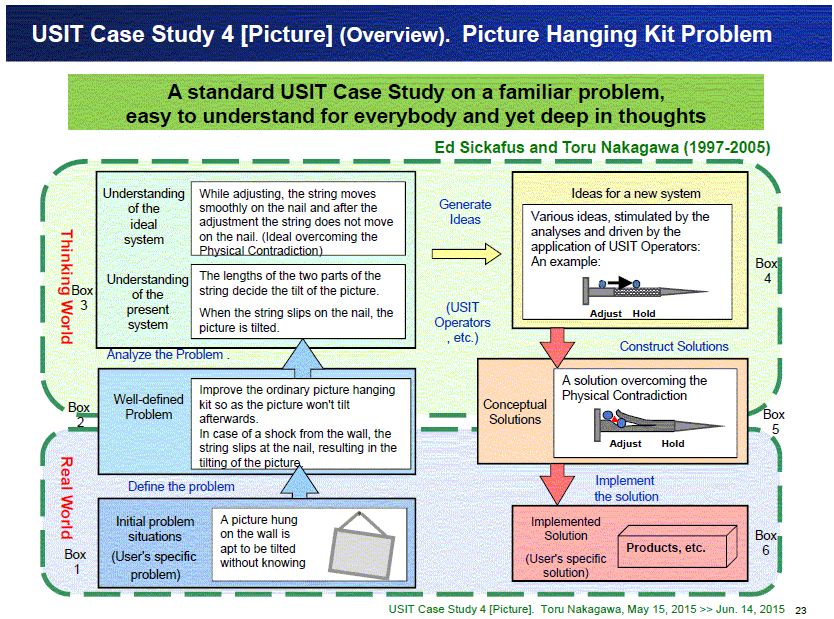

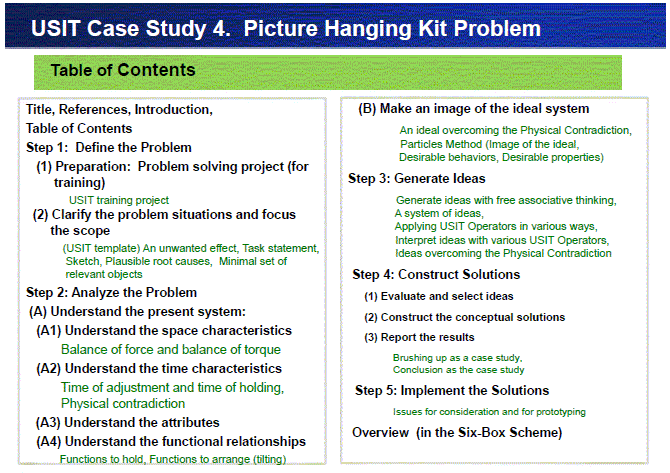

This is the USIT Case Study No. 3 documented in the "Collection of USIT Case Studies" The present HTML page shows first 3 introductory slides of the case study and the last overview slide summarizing the case in the 'Six-Box Scheme'. The whole set of slides are posted in the PDF file |
![]() |

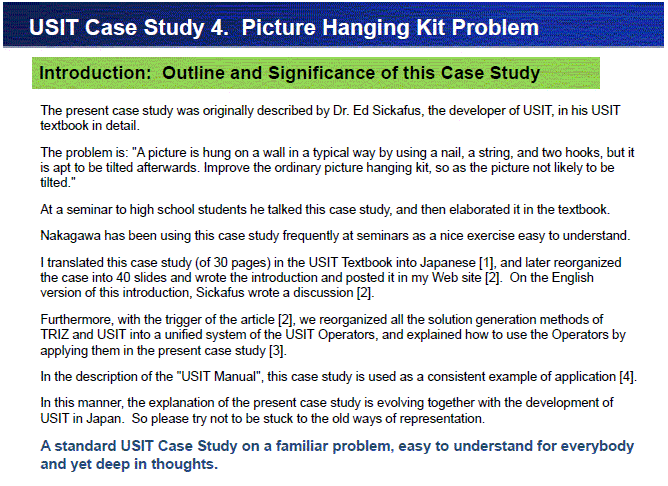

This case was originally described by Dr. Ed Sickafus in his USIT Textbook: "Unified Structured Inventive Thinking: How to Invent" (1995). It has been used, revised, and extended by Toru Nakagawa as a standard USIT case study along with the development of USIT itself. Please refer to the 2nd slide 'Introduction: Outline and Significance of this Case Study', shown below.
Top of this page | Slides Top | Slides PDF |
Nakagawa (2001) |
USIT Case Studies (Index) |
USIT Manual |
USIT Documents |
Japanese page |

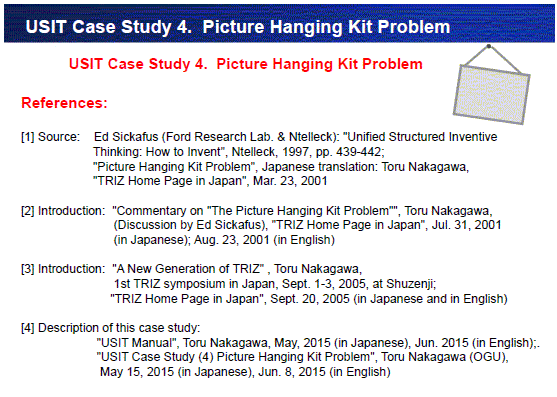

USIT Case Study 4. Picture Hanging Kit Problem
![]() |
